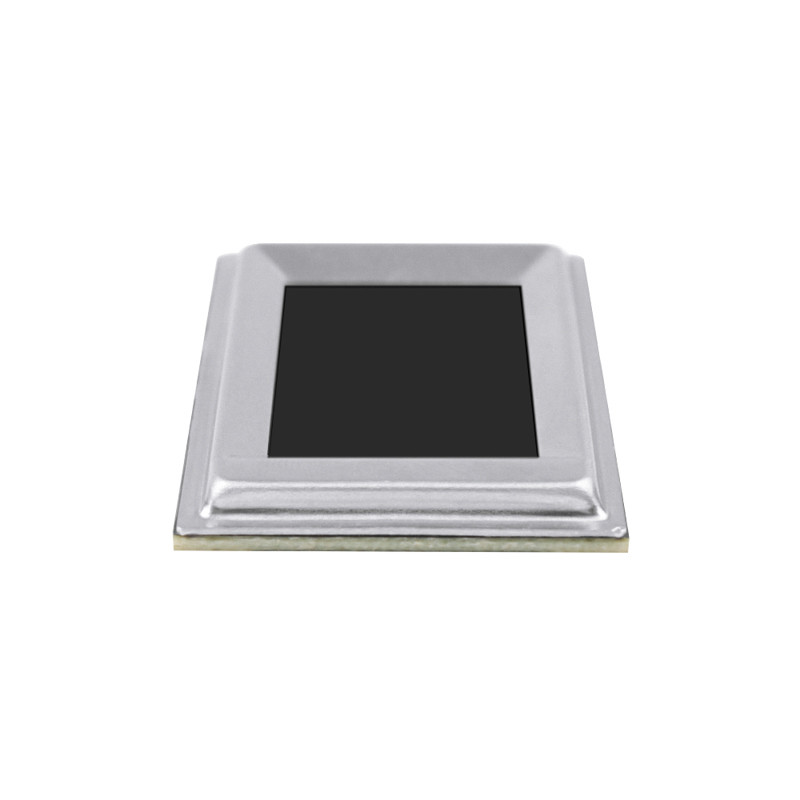

FAP20 Fingerprint Sensor Module Sensor Scanner FBI Capacitive Public Security

FBI Certificate FAP20 Capacitive Fingerprint Sensor For Public Security

Attention

• VCC requires independent LDO power supply with independent power-off function. When low voltage warning appears, users should disable the function of module and replace the battery to avoid abnormal operation caused by voltage instability.
• Do not share the power supply with any high-power devices (buzzer, LED, LCD, electromagnet, motor, etc.).
• Power Ripple should be <50mV.

DESCRIPTION

FCS360 is a capacitive fingerprint module developed independently by 3F and 3F owns the whole intellectual property of its software and hardware. This module is a press type fingerprint module designed for specific ID authentication applications of 2nd-generation ID card, exit-entry administration, financial system, etc.

The module has the characters of low-consumption, high SNR, high surface hardness, excellent abrasion resistance, and good adaptability to dry/wet fingers. It captures high quality image of 256*360 pixel and 508 DPI, with special coating technology, products against ESD up to 15KV.

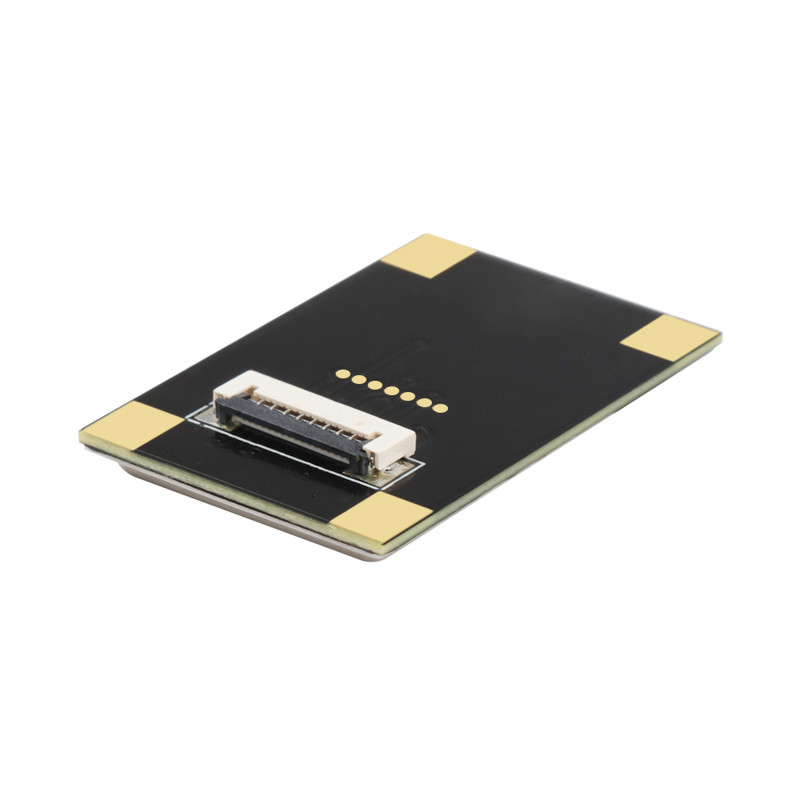

The module can be connected to external devices with FPC connector (8pin, 1.0mm interval).

Specification

Product details

FAP20 Fingerprint Sensor Module

FBI Fingerprint Sensor Module

fap20 fingerprint scanner

FAP20 Fingerprint Sensor Module Sensor Scanner FBI Capacitive Public Security Images
